Little details in the nose

Oil Cooler
I chose to add an oil cooler to go along with the period correct look. A few issues surfaced.

Oil Cooler: The original used a six row Mocal cooler. Those are still available today. I chose to use an Earl’s brand, based solely on price and availability.

Shrouding: The cooler is encased in an aluminum shroud to direct airflow thru the cooler. These may still be available from Cobra Restorers or Finishline. I made mine from .040 aluminum.

The originals slanted to the rear some amount. When you first set the cooler into position, it rest vertically ( and easily) on the lower edge of the molded scoop. My first pattern was done with the cooler setting vertical. But as I finished it, the look it presented just didn’t meet the rest of the build. It would have been functional and most persons would have never noticed.  But I put my thinking cap on and started cutting more posterboard patterns. The tilt of the cooler is only barely noticeable thru the opening. But the path of the oil lines is very apparent.

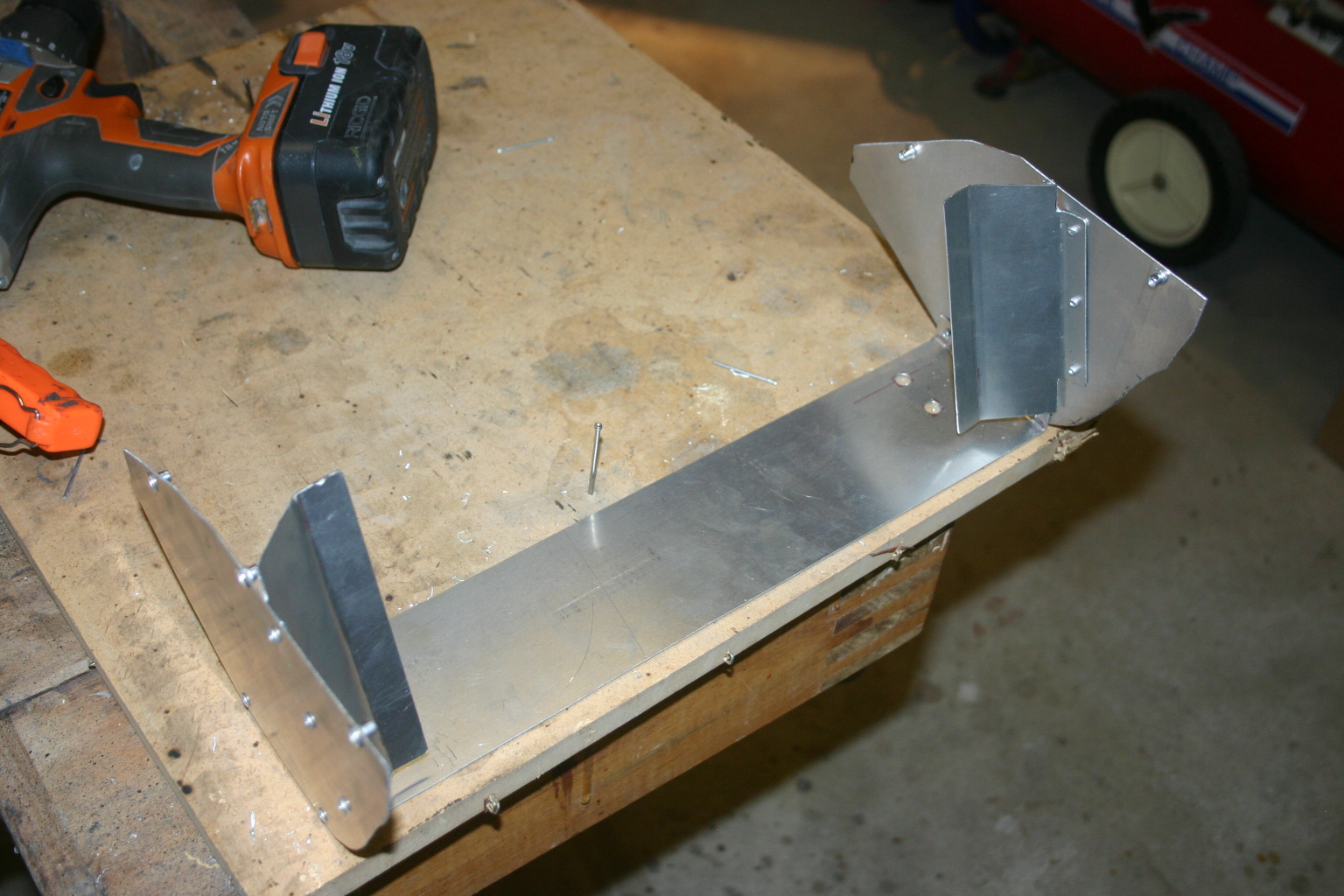

IMG_5519 IMG_5520 IMG_5522 IMG_5523
Shroud details Lower shroud The side ears direct air flow thru the cooler core Shroud cover
IMG_5524 IMG_5525


I ended up making a shroud that slips under the front lip of the nose scoop. It runs horizontally back towards the radiator about 5″. It then angles down about 15 degrees, to provide the area for the cooler. The upper cover then angles about another thirty degrees, down towards the lower edge of the radiator.

Looking at the pictures, you’ll notice a screen cover on the radiator. This is a 1/4″ Stainless Steel mesh, to keep some of the larger chunks out of the radiator. Just in the shop, I found it very prone to damage. Those aluminum fins are really fragile.

You’ll see a small filler panel on each side of the cooler shroud, to close off the nose opening on the bottom. Again, trying to replicate the originals as best as possible. Due to the cowl framing and fiberglass body, this isn’t an exact duplicate but it does present the more open cavity of the original CSX cars.

Cooler Thermostat: one of the issues of the oil cooler is in typical street use, it is too effective. The oil never comes to a proper operating temperature. I installed a PermaCool Oil Thermostat as part of the lines. It is tucked up under the front cowl tube. It uses a thermal wax to move a shuttle, similar to how a coolant thermostat works. When the bypassing oil is hot enough to expand the wax, the shuttle moves and directs the oil thru the cooler. Until then, it bypasses the cooler and goes on to do its job. You’ll find larger and more costly units from various suppliers. This seemed to be the most logical approach for me.

IMG_5532 IMG_5531 IMG_5534 IMG_5530
Thermostat, clamped to cowl frame tube Lower fitting at cooler Hose path Finished look

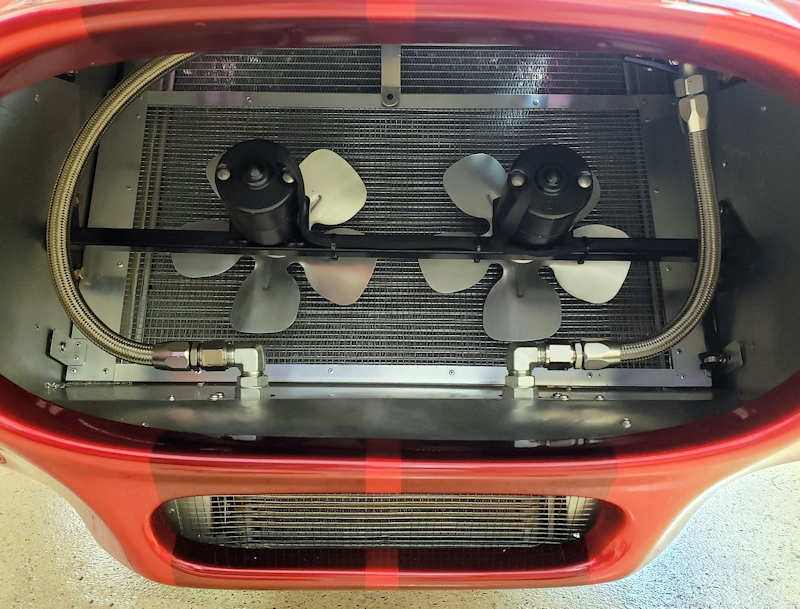

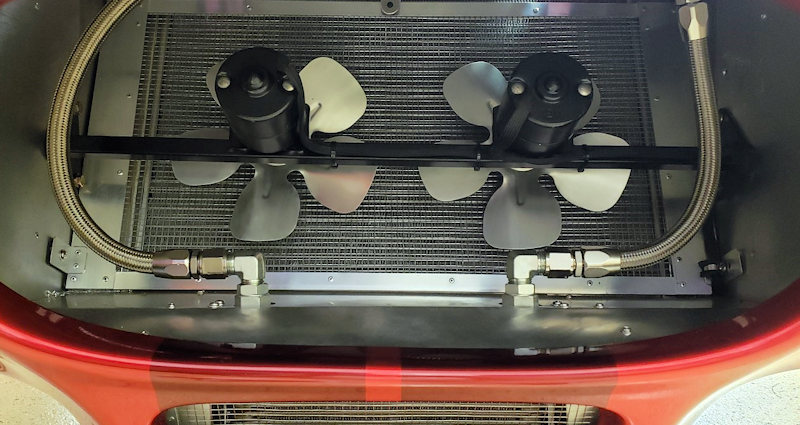

Twin radiator fans
Most S/C cars were equipped with twin fans ahead of the radiator. Very visible and obvious when viewing the car. Although the kit is equipped with a more effective puller type fan (technology has changed considerably since the 60’s), I added the twin pushers for the visual impact.

The two motors are fan motors from 60’s era Ford vehicles. A well placed search on eBay will often return these. I found three NOS motors, but they had the later vent slots in the end of them. No big deal – a little sheet metal cutting and some MIG work and the end caps are closed and sealed to the weather. Just like the originals.

The fans came from W.W. Grainger. I made spacer bushings to space the fan past the mounting structure. A 1/4″ bolt holds the fan to the end of the spacer. Twin set screws keep the spacer on the shaft and a third screw serves as a lock to the fan mounting bolt.

The crossframe and mounting brackets were fabricated in the shop. All was painted frame black before mounting. The assembly is positioned in front of my radiator protection screen and bolted to the side tubes of the cowl frame.

Not completed but on the list is a switch control to turn them on or off. Right now, they are strictly visual

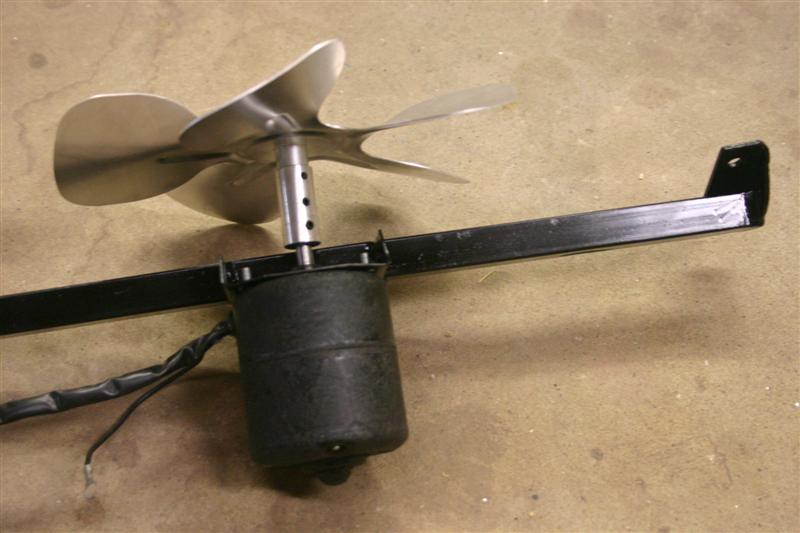

IMG_3933 IMG_3936 IMG_4121 IMG_4125
basic components fan motor fan / spacer motor mount

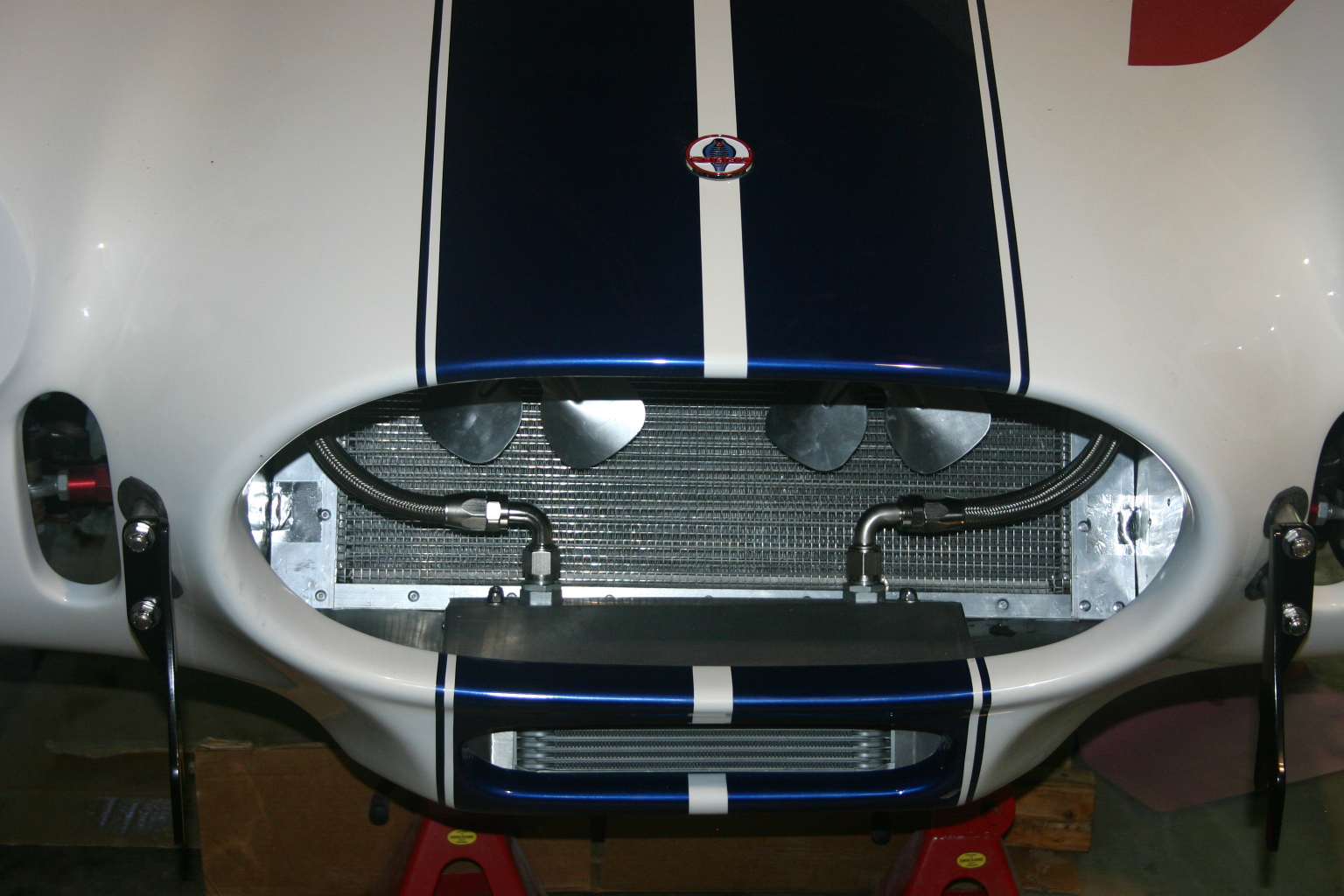

IMG_4115 IMG_5535 IMG_5540 IMG_5541
finished components installed

IMG_5535

Finished Look
