I built a metal “build bench” to work on the GT40. From a number of other builders, I’ve learned:

• The underside of the lowest tube has to be tall enough to allow the wheels and legs of an engine hoist to roll under the stand
• Much of the work will be done at the level of the sponson top so overall height is critical. I chose to make mine 19″ tall. Be careful not to go too tall; you have to be able to get in and out of the cockpit.
• The casters will need to support the vehicle’s weight by the time you’re ready to put it on its feet. Make sure the casters have sufficient load capacity.

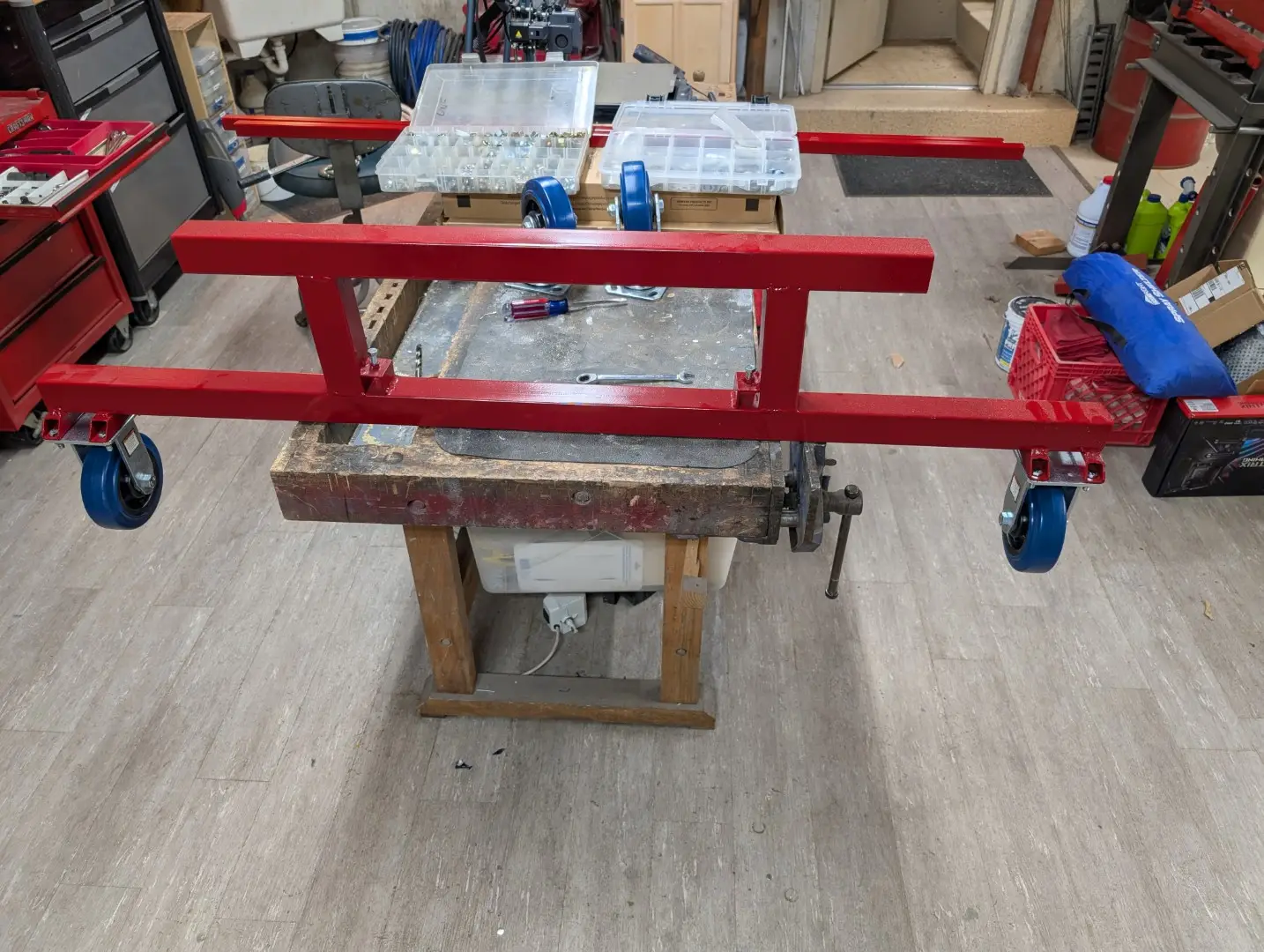

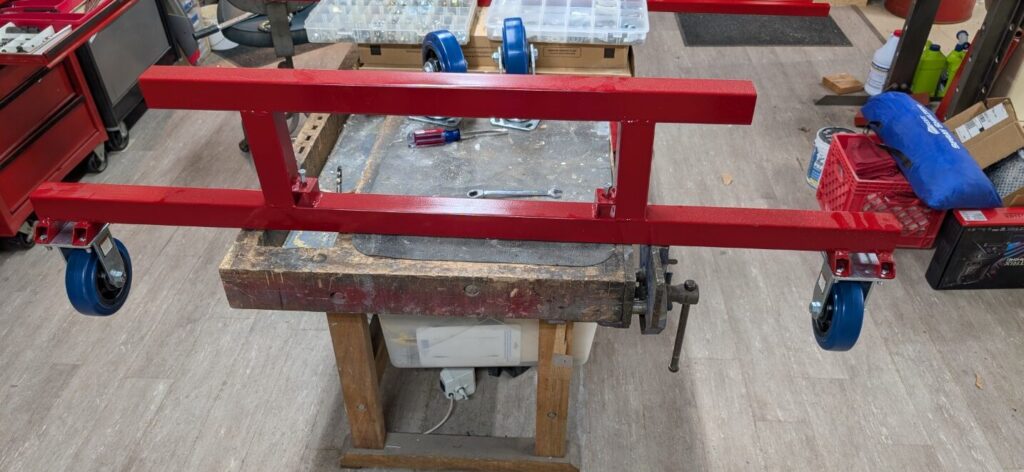

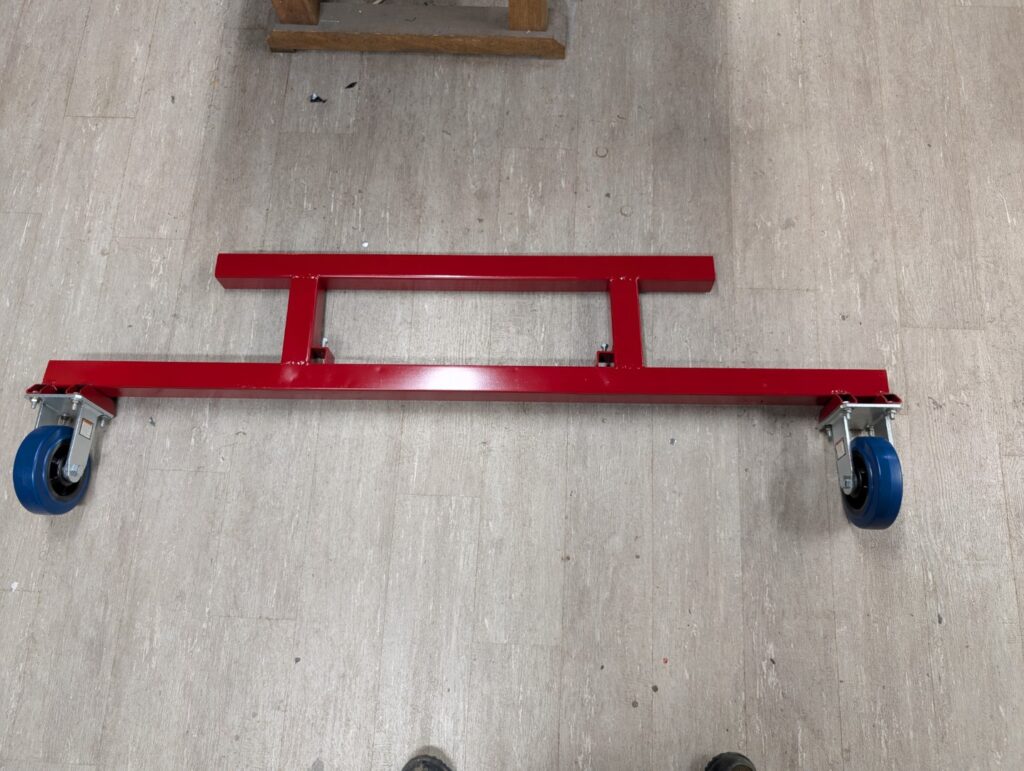

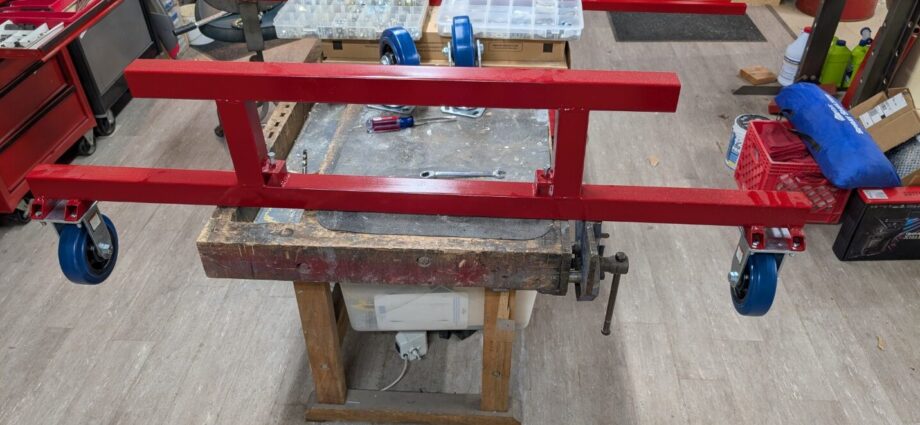

I built two of these using 2″ square tube, then spaced them with 1″ square tube. You’ll note the two sockets with a clamp bolt on the inside of the stand. This allows you to adjust the length and remove the crossbars from critical work areas.

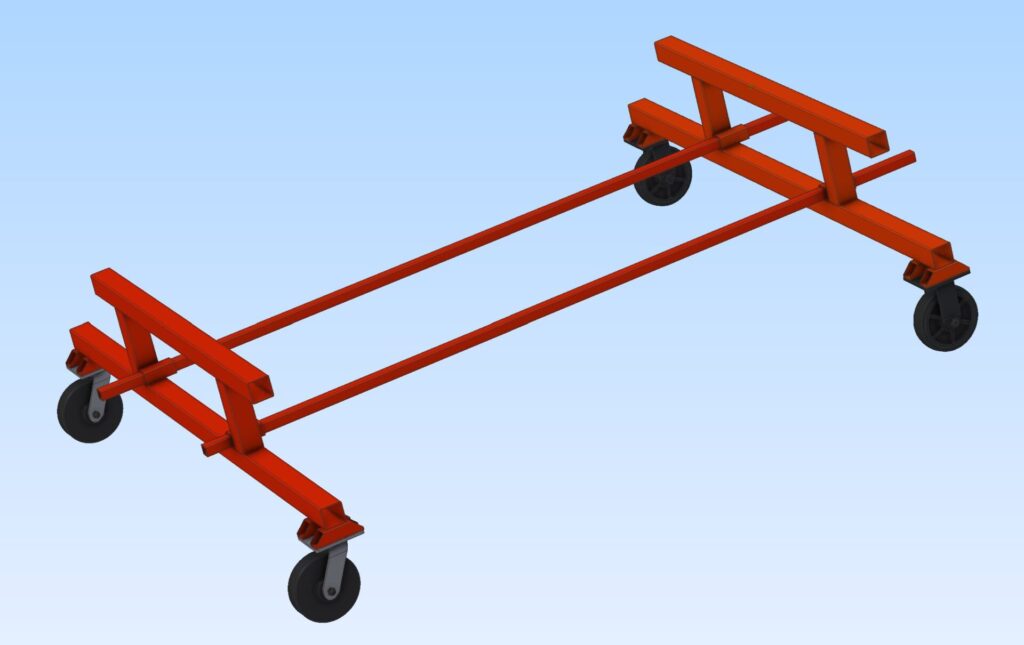

At the bottom of this page is a link to download the plans, if you’d like.
